System administration is a common requirement in many of the systems. This includes user authentication to authorization management to content within a system. There are set of commonly used functions within an legacy administrative module for authentication and authorization such as;

• Maintenance of user authentication credentials within the system in traditional systems.
• System has to maintain critical information of the user and maintain them such as passwords.
• User has to maintain a profile with the system; in other words user has to register on the system.
• To avoid the hassle of remembering password for multiple number of systems, Identity Delegation and Federated Authentication is used instead of maintaining credentials locally.
• In Federated Authentication, third party openID enabled service will be used to authenticate user where the system (Resource Owner) does not need to maintain password and login credentials locally.

2. Authentication Rules

• This will be maintaining reusable profiles for user authentication where they could be assigned to each user.
• This is required in legacy user authentication models.
• This will not be required when used federated authentication where the openID enabled authentication service provider will have to implement authentication rules since login credentials are maintained with them.

• Maintain Roles within the system
• E.g.:- Administrator, Financial Controller, Manager, Data Entry Operator etc.

• Keep track on which user has access to which role.
• This should be a function allowed to system administration personal.

• Maintains main modules of the system.
• Each module will attach to the Organization where it could be consumed by multiple business units.
• E.g.:- General Finance, Administration, Operations etc.

• Maintains each user interface listed under the module
• E.g.:- Tax data entry interface, Journal entry interface under General Finance Module

• Grouping of the above interfaces to increase accessability
• E.g.:- Content authorization management activities under ‘Authorization’ group

• List of data fields within an interface
• E.g:- Tax Type, Rate on Tax data entry interface
• This could be enable as an automated process where list of data fields as maintained within an excel sheet and they sync with the system when required to enhance maintainability.

Above master information will be mapped to each User Authorization on specific business unit where the user could select the business unit upon login to the system as below.

11. User – User Role – Module Mapping

• Map ‘User – User Role’ authorizing structure with selected Module for selected ‘Business Unit’.
• When this feature is enabled, access is granted at Module level where user has full access on all Interface and Interface Fields.

12. User – User Role – Interface Mapping

• Map ‘User – User Role’ authorizing structure with selected Interface for selected ‘Business Unit’.
• When this feature is enabled, access is granted at Interface level where user has full access on a selected Interface and Interface Fields.

13. User – User Role – Interface Fields Mapping

• Map ‘User – User Role’ authorizing structure with selected Interface Field for selected ‘Business Unit’.
• When this feature is enabled, access could be controlled at data field level where critical data fields could be grant / revoke for selected  ‘User – User Role’ authorizing structure.

All functionalities (modules) attached and authorized to the user could be generated dynamically upon user authorization.

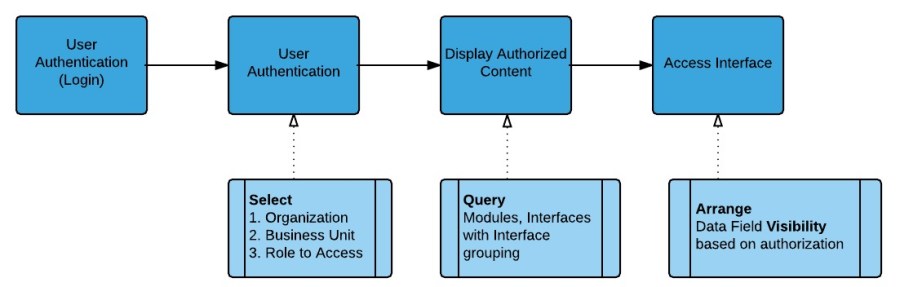

High-level data flow could be elaborated as below;

Common Validations and Security

This could be maintained at higher level of class hierarchy and override on sub level as and when required.

• Numbers cannot be minus.
• Characters could not be submitted on Numeric fields.
• Standard date format for whole system (could be configurable on property file)
• For session validation, following session attributes are required to be existing upon new resource request from the server.
  • LOGGER_KEY_SECURED (specific user credential with cryptographically secured value stored on a session cookie at client side)
• If session is not validated, it be redirected to the index by clearing session and cache data.
• Delete, Update operations must be altered before proceeding.

Database Design

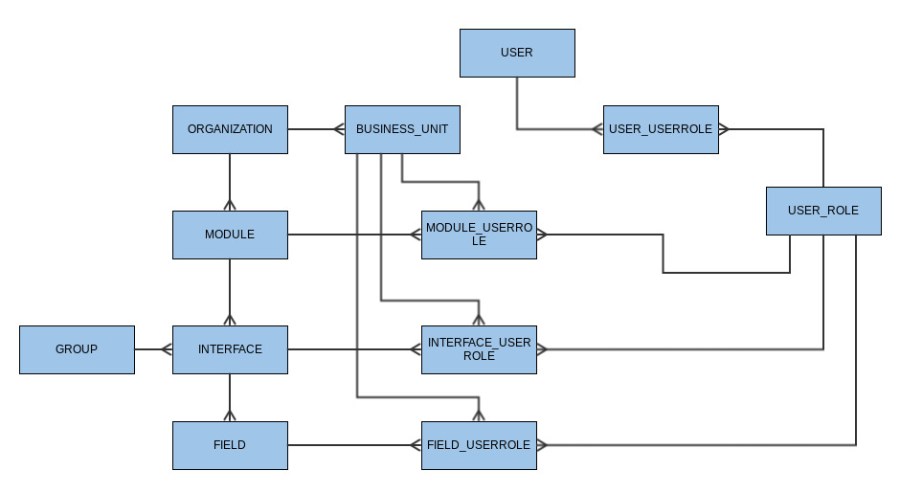

The following illustrates the database Entity Relationship Model of the module.

Detail standard table descriptions are elaborated in below.

• ORGANIZATION

Field name	data type	length	key	is null	default
o_id	int	–	pk	false	–
name	varchar	512	unique	false	–
description	varchar	2048	–	true	–
reg_no	varchar	256	unique	true	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1

• BUSINESS_UNIT

Field name	data type	length	key	is null	default
bu_id	int	–	pk	false	–
name	varchar	512	unique	false	–
display_name	varchar	512	unique	false	–
description	varchar	2048	–	true	–
reg_no	varchar	256	unique	true	–
address_1	varchar	1024	–	true	–
address_2	varchar	1024	–	true	–
address_3	varchar	1024	–	true	–
address_4	varchar	1024	–	true	–
contact_Number_1	varchar	16	–	true	–
contact_number_2	varchar	16	–	true	–
fax_number_1	varchar	16	–	true	–
fax_number_2	varchar	16	–	true	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1
o_id	int	–	fk	false	–

• AUTH_RULES

This table will not be required when using a federated or delegated user authentication mechanism since the password profiles of the user are maintained by the federated or delegated identity service provider such as google, facebook, linkedin etc.

Field name	data type	length	key	is null	default
ar_id	int	–	pk	false	–
profile_name	varchar	256	unique	false	–
password_valid_period	int	–	–	false	–
password_grace_period	int	–	–	false	–
maximum_login_attempts	int	–	–	false	–
password_length	int	–	–	false	–
number_of_capitals	int	–	–	false	–
number_of_symbols	int	–	–	false	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1

• USER

When using a federated or delegated authentication solution, the pass_word and ar_id fields which refer to the authentication features of the user are not required on the user table. Instead of those fields, it may required to add token values which are used to validate single sign on session of the user with the federated or delegated authentication service provider.

Field name	data type	length	key	is null	default
u_id	int	–	PK	false	–
user_name	varchar	256	unique	false	–
pass_word	varchar	256	–	false	–
first_name	varchar	512	–	false	–
last_name	varchar	512	–	true	–
contact_email	varchar	256	unique	true	–
contact_number	varchar	16	–	true	–
description	varchar	2048	–	true	–
login_attempts	int	–	–	true	0
restrict_times	int	–	–	true	0
date_last_logged	date	–	–	true	current date (logged)
time_last_logged	time	–	–	true	current time (logged)
date_last_password_change	date	–	–	true	password change date
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1
ar_id	int	–	fk	false	–

• USER_ROLE

Field name	data type	length	key	is null	default
ur_id	int	–	pk	false	–
name	varchar	256	unique	false	–
description	varchar	2048	–	true	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1

• USER_USERROLE

Field name	data type	length	key	is null	default
uur_id	int	–	pk	false	–
u_id	int	–	UNIQUE / Composite	false	–
ur_id	int	–		false	–
description	varchar	2048	–	true	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1

• USER_LOG

Field name	data type	length	key	is null	default
ul_id	int	–	pk	false	–
log_type	varchar	64	–	false	–
time	time	–	–	false	–
date	date	–	–	false	–
uur_id	int	–	fk	false	–

• MODULE

Field name	data type	length	key	is null	default
m_id	int	–	pk	false	–
title	varchar	256	unique	false	–
display_title	varchar	256	–	false	–
description	varchar	2048	–	true	–
base_url	varchar	2048	unique	false	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1
o_id	int	–	fk	false	–

• INTERFACE_GROUP

Field name	data type	length	key	is null	default
ig_id	int	–	pk	false	–
title	varchar	256	unique	false	–
display_title	varchar	256	–	false	–
description	varchar	2048	–	true	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1
m_id	int	–	fk	false	–

• INTERFACE

Field name	data type	length	key	is null	default
i_id	int	–	pk	false	–
title	varchar	256	unique	false	–
display_title	varchar	256	–	false	–
node_url	varchar	64	unique	false	–
description	varchar	2048	–	true	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1
ig_id	int	–	fk	false	–

• INTERFACE_FIELD

Field name	data type	length	key	is null	default
if_id	int	–	pk	false	–
form_id	varchar	256	unique / CK	false	–
i_id	int	–		false	–
is_mandatory	BOOLEAN	–	–	FALSE	false
description	varchar	2048	–	true	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1

• USERROLE_MODULE

Field name	data type	length	key	is null	default
urm_id	int	–	pk	false	–
ur_id	int	–	Unique / ck	false	–
m_id	int	–		false	–
description	varchar	2048	–	true	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1
bu_id	int	–	fk	false	–

• USERROLE_INTERFACE

Field name	data type	length	key	is null	default
uri_id	int	–	pk	false	–
ur_id	int	–	Unique / ck	false	–
i_id	int	–		false	–
create_granted	boolean	–	–	false	false
edit_granted	boolean	–	–	false	false
delete_granted	boolean	–	–	false	false
description	varchar	2048	–	true	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1
bu_id	int	–	fk	false	–

• USERROLE_INTERFACEFIELD

Field name	data type	length	key	is null	default
urif_id	int	–	pk	false	–
ur_id	int	–	Unique / ck	false	–
if_id	int	–		false	–
is_visible	Boolean	–	–	false	true
is_editable	boolean	–	–	false	true
description	varchar	2048	–	true	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
status	int	–	–	true	1
bu_id	int	–	fk	false	–

• MODULE_INTERFACE_FIELD_LOG

Field name	data type	length	key	is null	default
mifl_id	int	–	pk	false	–
update_description	varchar	2048	–	true	–
date_created	date	–	–	true	current date
time_created	time	–	–	true	current time
date_modified	date	–	–	true	current date
time_modified	time	–	–	true	current time
created_by	varchar	256	–	true	current user
modified_by	varchar	256	–	true	current user
uur_id	int	–	fk	false	–
if_id	int	–	fk	false	–
bu_id	int	–	fk	false	–

UI/UX Design

• Organization

Description – This will be a basic interface where the user will required to input following basic fields.
Input – Name, Registration No, Description, Status (active by default)
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – ORGANIZATION

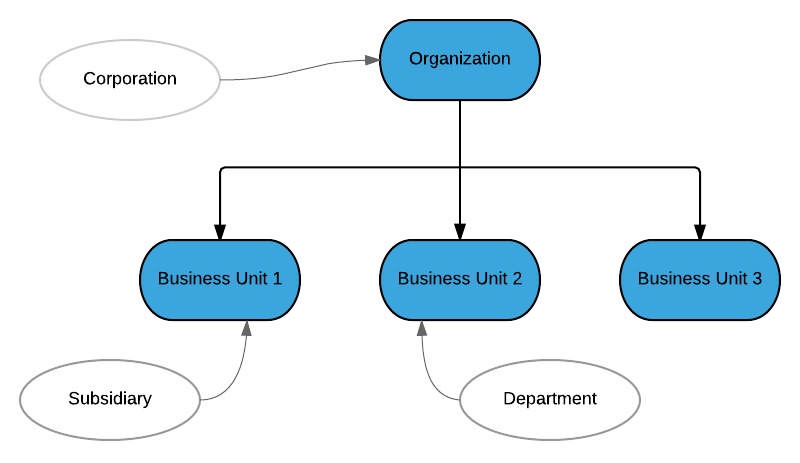

• Business Unit

Description – Business Units under the Organization will be added via this interface.
Input – Organization (List Box with Organizations), Name (System purpose – technical), Dispalay Name (Display purpose – non technical), Registration No, Address Field (Expandable up to 4 lines), Contat Details (Expandable up to 2 lines), Fax Details (Expandable up to 2 lines), Status (active by default)
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – BUSINESS_UNIT

• Authentication Rules (Not required in Federated Authentication)

Description – Basic interface to enter authentication profiles of users
Input – Profile Name, Password Length, Password Valid Period, Password Grace Period, Max Login Attempts, Number of Caps, Numbers of Symbols, Status (active by default)
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – AUTH_RULE

• User

Description – This will be a basic interface to enter user details
Input – Authentication Profile (List box of Auth Profiles if delegated identity is not used), Username, Password (if delegated identity is not used), First Name, Last Name, Email, Contact Number, Description, Login Attempts (Read only – Manage by system), Restricted Attempts (Read only – Manage by system), Date-Time Last Logged (Read only – Manage by system), Status (active by default)
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – USER

• User Role

Description – A basic interface to enter user role details
Input – Name, Description, Status (active by default)
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – USER_ROLE

• User – User Role (User Authentication)

Description – Mapping user to required user roles will continue on this interface.
Input – User (To be select on left side of the screen), User Role (To be displayed on right side of the screen where already grated roles are shown as icon/action to revoke, and not grated roles are shown with check box.
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – USER_USERROLE

• Module

Description – A basic interface to enter module details
Input – Title (System purpose – technical), Display Title (User purpose – non technical), Description, Status (active by default)
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – MODULE

• Interface Group

Description – A basic interface to enter interface grouping details
Input – Module (List box to select the Module), Title (System purpose – technical), Display Title (User purpose – non technical), Description, Status (active by default)
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – INTERFACE_GROUP

• Interface

Description – A basic interface to enter interface details
Input – Module (List box to select the Module), Title (System purpose – technical), Display Title (User purpose – non technical), Node Url (Interface access link or parameter), Description, Status (active by default)
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – INTERFACE

• Interface Field

Description – This is a basic interface to maintain interface fileds
Input – Module (List Box to select the Module), Interface (List Box to select the Interface), Form Id (Field Name on interface), Mandatory (yes / no box), Description, Status (active by default), Upload ( Function to upload interface fields since it will be convenient at the initial data entry over manual entry)
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – INTERFACE_FILELD

• (User Role) – Module (Module Authentication)

Description – Mapping of each Module to authorized User Roles.
Inputs – Organization, Business Unit, UserRole (List box on left side), Module (List Box on right side)
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – USERROLE_MODULE

• (User Role) – Interface (Interface Authentication)

Description – Mapping of Interface to authorized User Roles
Input – Organization, Business Unit, UserRole (List Box on left side), Module (List Box on middle), Interface (List Box on right)
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – USERROLE_INTERFACE

• (User Role) – Interface Field (Interface Field Authentication)

Description – Mapping of Interface Field to authorized User Roles
Input – Organization, Business Unit, UserRole (List Box on left side), Module (List Box on middle), Interface (List Box on right), Field (List Box bottom)
Functions – Create, View, Update, Delete
Algorithms – N/A
Security – Super user security scope
Validations – Common validations
Entities – USERROLE_INTERFACEFIELD

The design could be modified according to the customized requirements and further this design could be extended to manage folowing features such as;

• Alerts and Notifications Management

Manage and keep track of the alerts generated for various validations / conditions for the purpose of populating upon user login.

• Work-flow Management

There will be following features enabled on the above design such as;

– Define a work-flow for specific Interface with number of approval levels.
– Define actor (User or User Role) for each level.
– Integrate work-flow feature on interface tool bar (upon save or based on condition) where the end user could initiate and pull the record on to the work-flow.

• Schedule Management

There will be requirement to schedule reports and jobs to be executed on specific date / time or periodically. In order to cater for that requirement scheduler could be integrated with this module.

• Reports Management

As Interfaces, system generated report authorization could be managed using the Interface functionality of the above design.

Thisara.
